Product Application

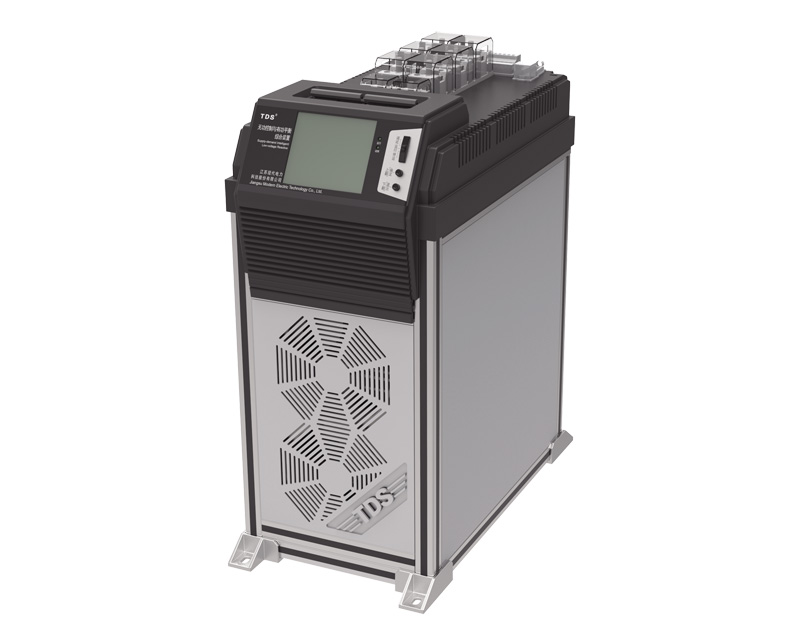

TDS-G Supply-demand Type Harmonic Management and Reactive Power Control & Active Power Balance Comprehensive Module (APF) is a device that can generate the current with same range to harmonics and reactive current but opposite polarity to inject into the grid by performing real-time detection on harmonic current and reactive power current so as to realize the function of filtering grid harmonics and reactive compensation. The product can be assembled into outdoor-type and indoor-type harmonic management and reactive power control & active power balance comprehensive device by a building-block mode in the box or cabinet, which can be applicable to the electrical environment where harmonic management, reactive power compensation and active power balance are required.

Main Features of the Product

(1) IGBT module of larger margin, as a renowned international brand, is selected, which has high reliability.

(2) With functions of dynamic tracking and compensation for rapidly changing harmonics, the product is highly controllable and quickly responsive.

(3) It has a variety of operating modes, such as constant reactive power control, constant power factor control and active power balance, with strong universality and practicability.

(4) It possesses intelligent temperature monitoring and perfect multiple protection to ensure the safe and reliable operation of the device.

(5) A combination of the isolating switch and the quick fuse at the incoming ends of power supply makes sure reliable speedy protection and convenient maintenance.

(6) It bears same structure with the intelligent integrated low-voltage reactive power compensation module, which can be easily combined with it.
