Product Application

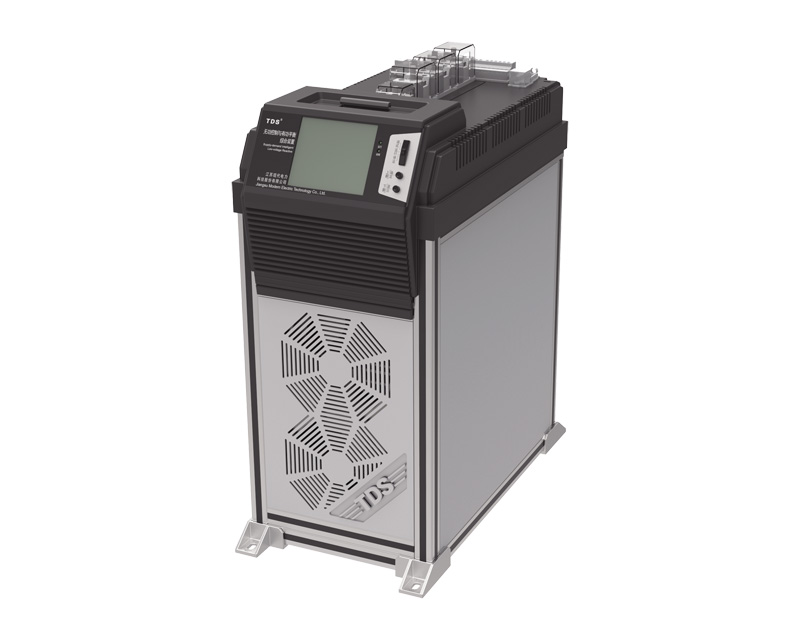

TDS-G Supply-demand Type Low-voltage Static Var Generator Module (SVG) is a device that can generate reactive power current of opposite properties that meets compensation requirements to inject into the grid by performing real-time detection on inductive or capacitive reactive power current so as to realize continuous compensation for the dynamic non-hierarchical difference of reactive power. The product can be assembled into outdoor-type and indoor-type low-voltage Static Var Generator device via a building-block mode in the box or cabinet, which can be available for low-voltage reactive power compensation in the electrical environment where the reactive power changes rapidly. The product is simultaneously endowed with the continuous three-phase load regulation function of the dynamic non-hierarchical difference .

Main Features of the Product

(1) IGBT module of larger margin, with a well-known international brand, is adopted, which has high reliability.

(2) With functions of dynamic tracking and compensation for rapidly changing reactive power, the product is highly controllable and quickly responsive.

(3) It has a variety of operating modes, such as constant reactive power control, constant power factor control and active power balance, with strong universality and practicability.

(4) It possesses intelligent temperature monitoring and perfect multiple protections to ensure the safe and reliable operation of the device.

(5) A combination of the isolating switch and the quick fuse at the incoming ends of power supply makes sure reliable speedy protection and convenient maintenance.

(6) It bears same structure with the intelligent integrated low-voltage reactive power compensation module, which can be easily combined with it.
