Product Application

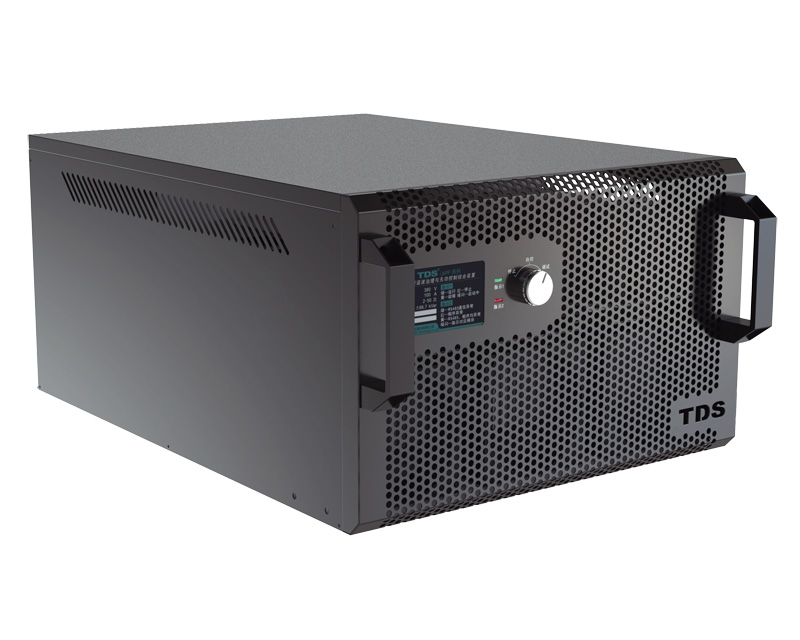

TDS (APF) Harmonic Management and Reactive Power Control & Active Power Balance Comprehensive Module (APF) is a device that can generate the current of same range with harmonics and reactive current but opposite polarity to inject into the grid by performing real-time detection on harmonic current and reactive current so as to realize the function of filtering grid harmonics and reactive compensation. The product can be assembled into outdoor-type and indoor-type harmonic management and reactive power control & active power balance comprehensive device via a building-block mode in the cabinet and cabinet, which can be applicable to the electrical environment where harmonic management, reactive power compensation and active power balance are required.

Main Features of the Product

(1) With well-known international IGBT adopted and larger modular margin designed, the device is highly reliable.

(2) With functions of dynamic tracking and compensation for rapidly changing harmonics, the product is highly controllable and quickly responsive.

(3) It has a variety of operating modes, such as constant reactive power control, constant power factor control and active power balance, with strong universality and practicability.

(4) It possesses intelligent temperature monitoring and perfect multiple protection to ensure the safe and reliable operation of the device.

(5) The product is modular structure, even if single module exits, the normal operation of other modules won’t be influenced, featuring high reliability. Besides, online replacement of the module is also workable.

(6) Unique hierarchical heat-dissipation channel realizes effective and speedy heat dissipation, ensuring long-term stable operation of the product.
