Product Application

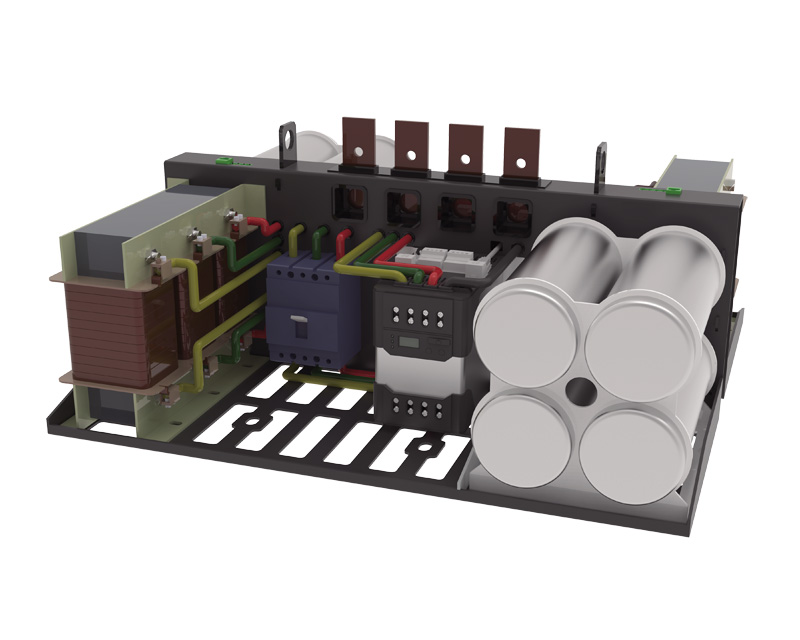

TDS-K(F) Open-type Intelligent Integrated Low-voltage Reactive Power Compensation Component (Duplex Type) is a device that assembles such independent components as incoming power switch, TDSFK low-pressure compound switch, low-voltage power capacitor, reactor etc together, so as to make it possess a series functions of zero-crossing switching, measurement, protection, online communication and so on. The products can be assembled, via building block approach, into low-voltage reactive power automatic compensation devices in the indoor cabinet.

Main Features of the Product

(1) Open structure, good heat dissipation conditions, low operating temperature-rise and long service life; the product covers 2 structures: unilateral type and bilateral type.

(2) Plastic housing is applied in the incoming power supply as the main circuit protection, with good safety performance.

(3) The compound switch is switch type without fuse.

(4) Capacitance of cylindrical metal shell is used in power capacitor, with built-in explosion-proof module inside, having features of good flame resistance performance, stable quality and high reliability.

(5) Products of ordinary type, harmonic-suppression type and speedy harmonic-suppression type can be formed in terms of the configuration with series electric reactor or without series electric reactor and the selected type of fling-cut switch.
