Product Application

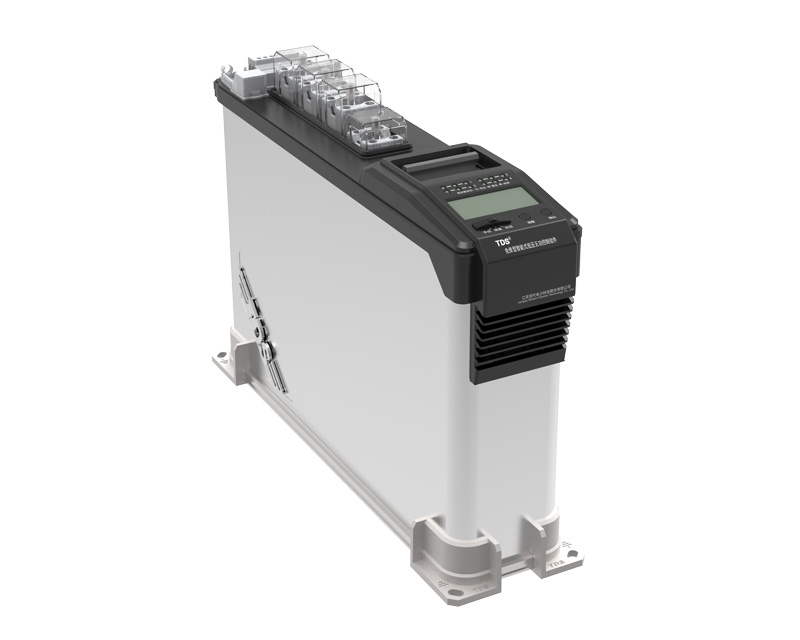

TDS-M Maintenance-free Type Intelligent Integrated Low-voltage Reactive Power Compensation Module (Device) not only maintains and perfect intelligentized performance, but also is endowed with strong features of reliable operation, safe operation, which is an upgraded product of existing intelligent low-voltage power capacitor products, conforming to strong intelligent requirements of grid construction. The product is assembled into indoor-type and outdoor-type low-voltage reactive power compensation device in a form of building block, used for low-voltage reactive power compensation in these situations where grid harmonics do not exceed the standards, and reactive power variation is relatively slower, so as to lessen grid loss, thus raising grid output and improving power quality.

Main Features of the Product

(1) Housing of the device is stainless steel, besides, primary and secondary integral sealing technology are adopted in the body structure, enjoying good protection performance.

(2) Built-in speedy fuse possesses strong breaking capacity a that could quickly cut off internal fault circuit, highly safe and reliable.

(3) Housing of internal capacitor component is made of metal that bears good flame resistance. Moreover, each capacitor component is equipped with built-in explosion-proof module, which enhances its safety and reliability.

(4) It has good cooling and ventilation design, highly endurable to ambient temperature.

(5) There are two specifications: small capacity and large capacity, rated capacity of small-capacity product ≤40kVar, while rated capacity of large-capacity products ≤ 60kVar.

(6) Inner parts of the product integrate multiple groups of reactive power compensation, there are manifold combination modes: common compensation group quantity of small-capacity product≤3, split compensation group quantity≤2; common compensation group quantity of large-capacity product≤4, split compensation group quantity ≤ 2; mixed-use of common and split compensation is workable.
