Product Application

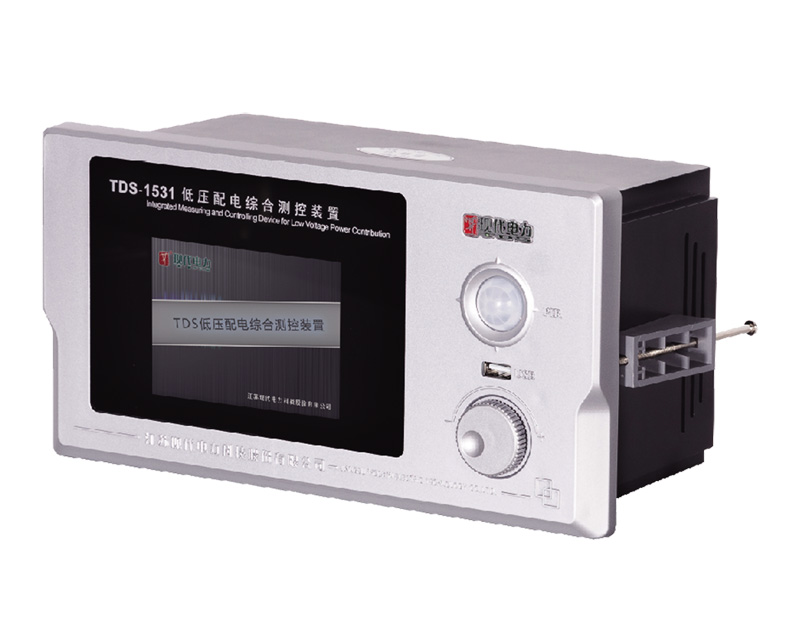

TDS-1531 Low-voltage Distribution Comprehensive Measure-control Device has a number of functions, such as distribution voltage, current, harmonic measurement and signal, protection, telecontrol as well as reactive power automatic compensation & control etc. The product can be applied matching with our various TDS series intelligent integrated low-voltage reactive power compensation module (device),composing low-voltage reactive power automatic compensation device.

Main Features of the Product

(1) Embedded installation structure.

(2) It is equipped with a large area of color LCD to ensure an amicable man-machine interactive interface, which is easy to operate.

(3) With a function of infrared induction included, the backlit will be bright automatically upon someone getting close to it; upon someone leaving, the backlit will prolong and then go out automatically, hence, it has long service life.

(4) In addition to comprehensive function of reactive power compensation, it also involves such functions as harmonic measurement, statistics on integral point data and storage etc.

(5) There are multiple ports like RS232, RS485, network port USB etc available.

(6) Online program upgrade can be realized via USB port.

(7) GPRS or network module could be installed to communicate with the backstage supporter, constituting system work.

(8) It can be applied matching with TDS speedy harmonic suppression type intelligent integrated low-voltage reactive compensation module(device) to realize reactive power dynamic speedy compensation.
