Product Application

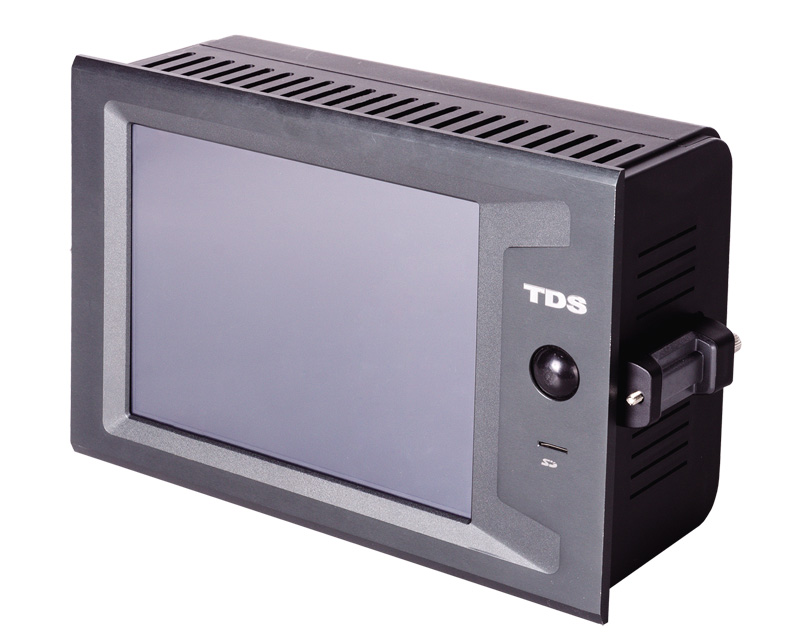

TDSCIENCE-AT Power Distribution Data Collection Terminal bears numerous functions, such as distribution voltage, current, harmonic measurement, statistics and signal, protection, telecontrol, reactive power automatic compensation & control as well as collecting parameters of intelligent integrated low-voltage reactive power compensation module (device) and so forth. The product can be applied matching with TDSCIENCE series intelligent integrated low-voltage reactive power compensation module (device), composing low-voltage power distribution monitoring and reactive power compensation system.

Main Features of the Product

(1) Embedded installation structure.

(2) It is equipped with a large area of color LCD to ensure an amicable man-machine interactive interface, which is easy to operate.

(3) With a function of infrared induction included, the backlit will be bright automatically upon someone getting close to it; upon someone leaving, the backlit will prolong and then go out automatically, hence, it has long service life.

(4) In addition to comprehensive function of reactive power compensation, it also involves these functions: harmonic measurement, statistics on integral point data and storage etc.

(5) External secondary current transformer outputs secondary small voltage signal, which won’t result in the occurrence of open-circuit current, therefore, it is safe and reliable to apply.

(6) There are multiple ports like RS232, RS485, network port USB etc available.

(7) Online program upgrade can be realized via SD card.

(8) It can be set to control terminal and collection terminal through mode.

(9) A variety of approaches (GPRS, network, WIFI, etc) can be used to connect and communicate with the backstage supporter, constituting system work.
